COUSTwall

Customized acoustic wall panel

The COUSTwall is a wall panel that improves acoustics by reducing reverberations. This way, it increases speech intelligibility in the room.

Maximum sound absorption is ensured by its unique high-density acoustic filling. For this reason, the COUSTwall is the top-of-the-line acoustic solution on the market, as is the case with all our products.

An inconspicuous COUSTwall, or one that draws attention?

The high-quality COUSTwall is custom-made on-site. It can be made in large dimensions or to cover an entire wall. If necessary, modifications can be made for doors and windows, and for sockets, switches, lighting, etc. The canvas and the aluminium frame of the COUSTwall can be customised with colours of your choice. Do you prefer inconspicuous colours, or an eye-catching print? For prints, we apply sublimation printing for a crystal-clear result.

Product specifications
Technical properties Downloads

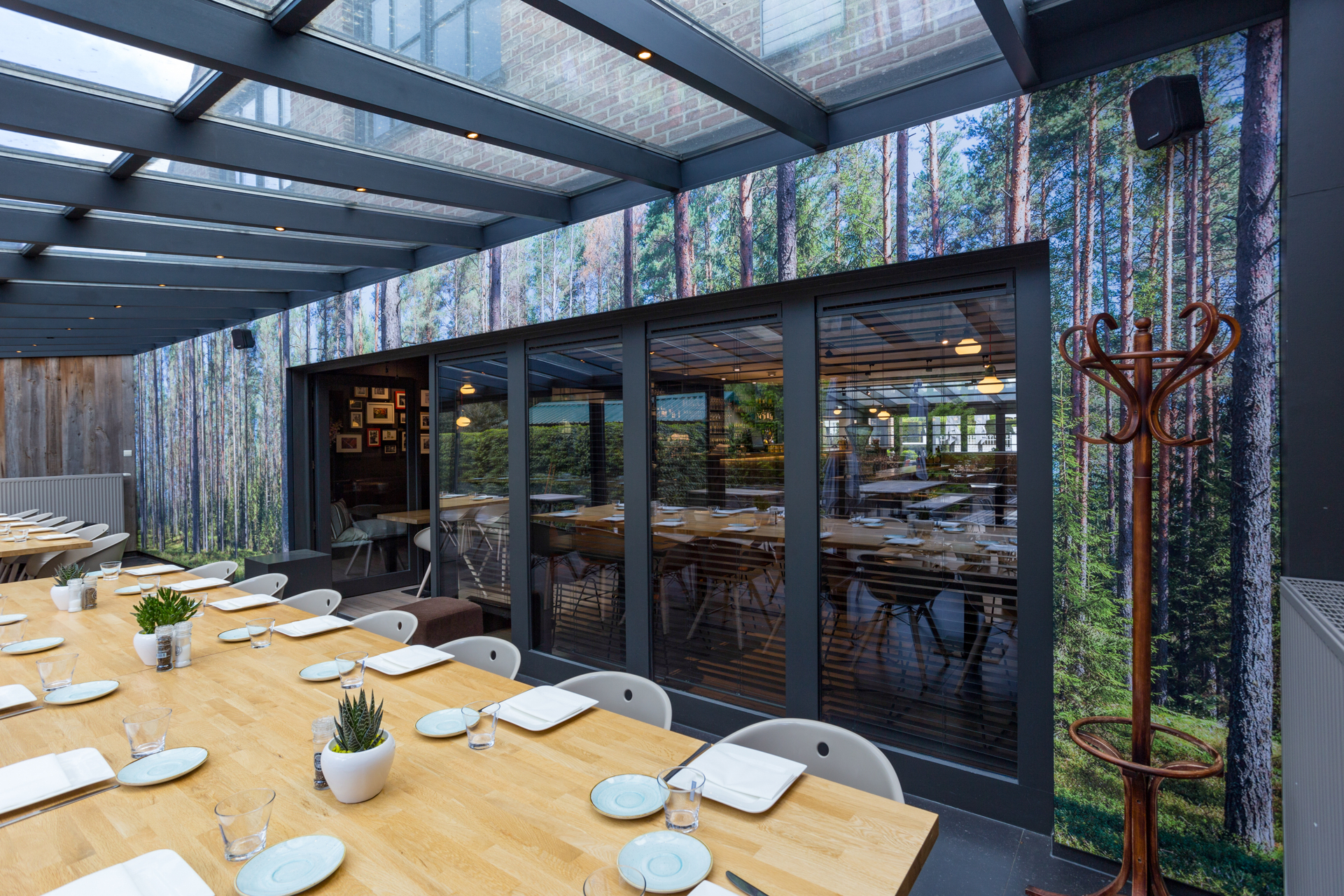

COUSTwall at the white yellow cross COUSTwall at BMW COUSTwall at the restaurant Vreedehof COUSTwall, an invisible acoustic solution for this house COUSTwall with print in the restaurant Bosmolen

Product specifications

Acoustic properties (core)

Thickness 50 mm

  • An acoustic core 50mm thick is required for damping down bass tones and reducing the number of decibels.

Density 80 kg/m³

  • High density = lots of mass
  • High density + thickness 5 cm = our products are able to diminish all human sound frequencies by 100%

Finish

Aluminium frame

  • Sturdy profiles of our own design
  • 57 mm thick
  • Powder-lacquered and so scratch-free
  • Four colours available: RAL 9010 (warm white), RAL 9016 (traffic white), RAL 9006 (aluminium grey), 7021 (black)

Clamps

  • Covers can be stretched tight
  • Covers are replaceable

Molton

  • Covers the acoustic filling
  • Provides a smooth, even effect
  • Trevira CS quality

End cover/tension in Trevira CS

  • Stable branded fibre
  • Not affected by variations in temperature and humidity: cover remains stretched flat
  • 100% polyester
  • Flame-retardant

Sublimation print

  • Razor-sharp prints
  • Longer colour fastness
  • Cover remains acoustically open (as opposed to inkjet print

Technical properties

Acoustic value

NRC = 0,95; α value 1

Fire class

filling A1, canvas B-s1-d1

Weight

10 kg/m²

Thickness

Acoustic core of 50 mm, total panel thickness with frame = 57 mm

Acoustic filling

Mix of stone wool and glass wool

Canvas

100% polyester (Trevira CS)

Downloads

Measurement report
